ph water
Under sink RO System 100 Gallon FDA listed
Under sink RO System 100 Gallon FDA listed
Under sink RO System 100 Gallon FDA listed

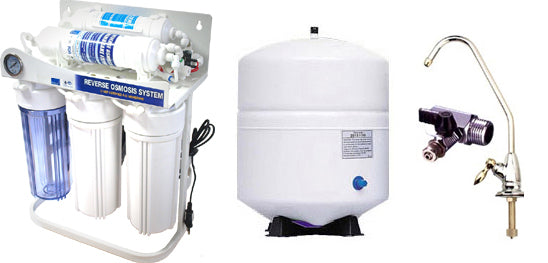

Under sink RO system100 Gallon with tank and installation kit, 5 stages
Micro-GAC-CTO-RO membrane-TCR
Operational Parameters |
| Operating Temperatures | Maximum 113°F (45°C) | Minimum 40°F (4.4°C) |
| Operating pressure | Maximum 100 psi | Minimum 30psi |
| pH Range | Maximum 10.0 | Minimum 4.0 |
Specifications |
| Production | 100 GPD (at 77°F Water Temp.) |
| Membrane rejection | 96% (typical) |
| Tank capacity | 3 gallons |
| Pump | DC 24V (water booster pump) |
| Housing | Double O-ring housing |
| fitting | One touch fittings |
| Solenoid Valve | DC 24V 250mA |
| Pressure gauge | Maximum 220psi |
| Transformer | Input 100~240V, 50~60Hz / Output DC 24V 1.2A |
| Faucet | HF-02 |
| Filter system | PP10" - GAC - CTO - RO Membrane - TCR |

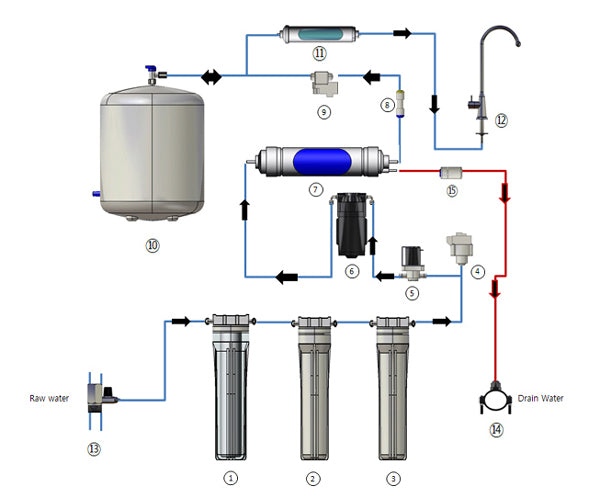

| No | Description |
| 1 | PP 10" (Clear housing) |
| 2 | GAC 10" (White housing) |
| 3 | CTO 10" (White housing) |
| 4 | Low pressure switch |
| 5 | Solenoid valve |
| 6 | Pump |
| 7 | RO Membrane |
| 8 | Check valve |
| 9 | High pressure switch |
| 10 | Tank |
| 11 | TCR |
| 12 | Faucet |
| 13 | Inlet valve |
| 14 | Drain connector |
| 15 | Flow Restrictor |
