Under sink RO system 150 Gallon
Under sink RO system 150 Gallon
Under sink RO system 150 Gallon

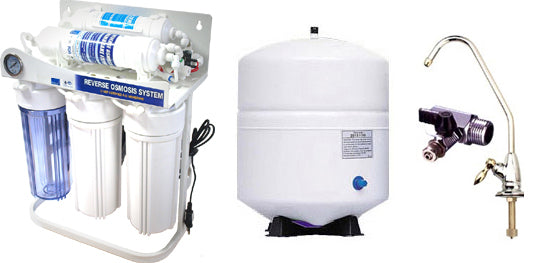

Under sink RO system150 Gallon with tank and installation kit, 5 stages
Micro-GAC-CTO-RO membrane-TCR
Operational Parameters |
| Operating Temperatures | Maximum 113°F (45°C) | Minimum 40°F (4.4°C) |
| Operating pressure | Maximum 100 psi | Minimum 30psi |
| pH Range | Maximum 10.0 | Minimum 4.0 |
Specifications |
| Production | 150GPD (at 77°F Water Temp.) |
| Membrane rejection | 96% (typical) |
| Tank capacity | 3 gallons |
| Pump | DC 24V (water booster pump) |
| Housing | Double O-ring housing |
| fitting | One touch fittings |
| Solenoid Valve | DC 24V 250mA |
| Pressure gauge | Maximum 220psi |
| Transformer | Input 100~240V, 50~60Hz / Output DC 24V 1.2A |
| Faucet | HF-02 |
| Filter system | PP10" - GAC - CTO - RO Membrane - TCR |

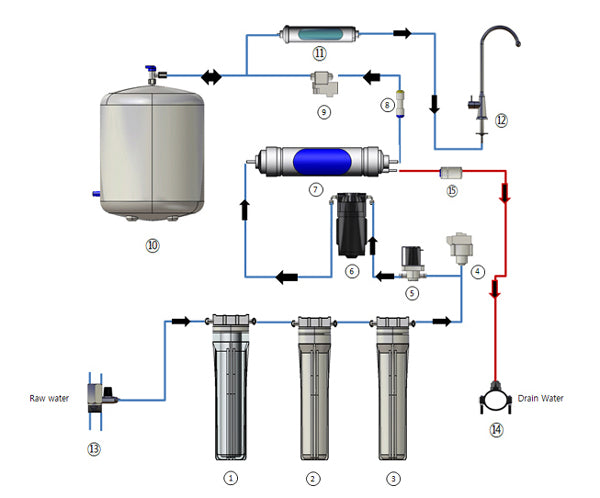

| No | Description |
| 1 | PP 10" (Clear housing) |
| 2 | GAC 10" (White housing) |
| 3 | CTO 10" (White housing) |
| 4 | Low pressure switch |
| 5 | Solenoid valve |
| 6 | Pump |
| 7 | RO Membrane |
| 8 | Check valve |
| 9 | High pressure switch |
| 10 | Tank |
| 11 | TCR |
| 12 | Faucet |
| 13 | Inlet valve |
| 14 | Drain connector |
| 15 | Flow Restrictor |
Share
Couldn't load pickup availability
Regular price
$759.00 CAD
Regular price
$1,035.00 CAD
Sale price
$759.00 CAD
